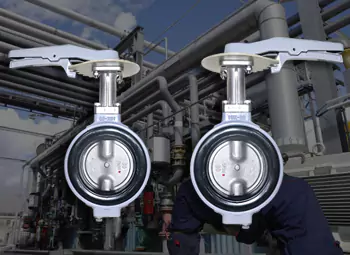

KITZ XJ Series Aluminium Butterfly Valves

Concorde Valves & Automations is a Mumbai-based authorized KITZ aluminum butterfly valve distributor supplying genuine, factory-traceable valves to industries across India. In business since 2011, we supply the KITZ XJ series in lever, gear and actuator-ready versions, backed by original KITZ documentation.

Unlike open-market resellers, every valve we supply is sourced directly through KITZ's authorized channel, giving buyers confidence in product authenticity and after-sales support.

Key Advantages of the KITZ Aluminum Butterfly Valve

Technical Specifications

Figures as published by KITZ Corporation for the XJ series. We check the model and size against your line conditions before quoting.

KITZ XJ Model Numbers and Operators

Every XJ valve carries a KITZ product code that tells you the operator, pressure class and neck type. Lever and gear size ranges are shown below; for actuated valves the range depends on the actuator selected, so send us the line size and we’ll confirm the model.

Long Neck or Short Neck: Which to Specify

The long neck is a stainless steel extension between the valve body and the lever, gearbox or actuator. On chilled-water and other cold lines it limits heat transfer along the neck, so condensation on the operator is kept to a minimum and the operator does not need its own insulation. That is why the long neck is the usual choice for HVAC chilled-water service, and it is the only version offered in ASME Class 150 and PN16.

KITZ backs this with its own laboratory test: long-neck G-10XJMEA valves carrying +5°C cold water, with 50 mm of glass-wool insulation around the valve and the gearbox left in open air, were checked across ambient temperatures of +20°C to +40°C to map where condensation forms on the gearbox. The results are published as a dew-condensation chart in the XJ catalogue; if your plant room runs hot and humid, send us the conditions and we’ll check them against it.

The short neck is a more compact JIS 10K option for water and air lines where condensation on the operator is not a concern. Both necks carry an ISO 5211 pad, so actuators can be fitted on site.

Applications

We supply the KITZ aluminum butterfly valve for use across:

For smaller screwed lines on water, oil, gas or air service, see our KITZ SZA brass ball valves.

What to Send for an Accurate Quote

Butterfly valve quotes go wrong when the flange standard or operator is guessed. Send these details and we can confirm the exact KITZ model in one reply:

Why Choose Concorde Valves & Automations

Being based in Mumbai gives us a logistical advantage for buyers across Maharashtra, Gujarat, and neighbouring industrial regions, with dispatch coverage extending to Delhi, Pune, Ahmedabad, Chennai, Hyderabad, and Bengaluru. As an authorized distributor, we provide:

Frequently Asked Questions

• What is a KITZ aluminum butterfly valve used for?
  It is used for isolating and controlling flow in water, HVAC, compressed air, and general industrial fluid lines where a lightweight, corrosion-resistant valve is required.
• What sizes and pressure classes does the KITZ XJ series come in?
  The XJ series runs from 40 mm to 300 mm (1½″ to 12″), depending on model and operator. It is available in JIS 10K and ASME Class 150 (maximum 1 MPa) and EN 1092 PN16 (maximum 1.6 MPa).
• Is the KITZ XJ a wafer or lug type butterfly valve?
  The XJ series is a wafer type valve. It sits between two pipe flanges and is held in place by the flange bolts, which keeps it light and compact. Because the bolts pass through both flanges, one side of the pipe cannot be removed while the other stays under pressure. If you need dead-end service like that, tell us before ordering so we can advise on the arrangement.
• What temperature can KITZ XJ butterfly valves handle?
  KITZ rates the XJ series for −20°C to +120°C, with continuous service from −20°C to +100°C, provided the fluid is not frozen. Pressure limits vary with temperature, so share both and we’ll check the rating.
• Is Concorde Valves & Automations an authorized KITZ distributor?
  Yes, Concorde Valves & Automations is an authorized KITZ aluminum butterfly valve distributor based in Mumbai, supplying genuine products with full documentation.
• What is the price of a KITZ aluminum butterfly valve?
  Pricing varies by size and pressure class — smaller sizes (40mm–100mm) are generally more economical, while larger sizes up to 300 mm cost more due to material and machining requirements. Share your required size and pressure class with our team for an exact quotation.
• What is the minimum order quantity for KITZ aluminum butterfly valves?
  We supply single pieces for maintenance and replacement needs, as well as bulk quantities for EPC and project orders. For commonly stocked sizes, there is no fixed MOQ; for non-stock or custom sizes, a minimum order may apply depending on the manufacturing batch.
• Are KITZ aluminum butterfly valves suitable for chemical applications?
  They are suitable for light, non-aggressive chemical media. For highly corrosive fluids, alternate valve materials are recommended — our team can advise on selection.
• How long does delivery take after placing an order?
  Valves in ready stock are typically dispatched within 2–3 working days. Non-stock sizes or pressure classes may require 7–10 working days, depending on availability from KITZ. We confirm exact timelines at the time of order.
• Do you provide installation support or guidance?
  We provide technical guidance on valve selection, sizing, and actuator mounting; on-site installation is typically handled by the buyer's contractor or EPC team.
• What documentation is provided with each valve?
  Each valve is supplied with original KITZ documentation, including material traceability certificates and datasheets on request.
• Can I get a brochure or datasheet before ordering?
  Yes, brochures and datasheets for the KITZ aluminum butterfly valve are available on request from our team.
• How do I place a bulk order for a project?
  Share your project's bill of quantities (size, pressure class, and quantity per item) with our team via call or email. We confirm stock availability, provide a consolidated quotation, and coordinate phased dispatch for large project timelines if required.
